Transmission Services

Transmission Services

Transmission Services provided by >Scott Young Enterprises include:


Functional Inspection

A functional inspection is used to determine the current status of a gearbox. It is advisable to perform this inspection when purchasing a used race car or transmission, or if your transmission has had extreme wear. The inspection consists of disassembly of the transmission into its major components, cleaning, inspection, and reassembly. A written report on the condition of the gearbox is then issued.

Functional Inspection of MK, FT, DG, NST, Staffs, LD $ 400.00
Functional Inspection of Jerico, Quaife RWD Transmissions $ 300.00

Rebuild of Bearing Carrier

Rebuilding of the bearing carrier consists of complete disassembly of the bearing carrier unit, cleaning, inspection, and written estimate. Upon approval of the estimate, the bearing carrier components are prepared to Scott Young Enterprises standards, set up and assembled for precise shifting and minimum drag. Price is for labor only. Parts not included.

Hewland/Webster MK, Staffs $ 449.00
FT200, FG, DG $ 589.00
LD200 $ 328.00
Formula Mazda $ 460.00

Recase of Transaxle

The bearing carrier is removed, but not disassembled, and the pinion shaft, clutch mechanism, and usable studs are removed from the old case. The side cover assemblies are removed and disassembled, as the preload and backlash must be reset. The differential is not disassembled. A new reverse idler spigot is installed, and the reverse gear backlash set. The pinion is set up to factory specification in the new case. New stub axle seals are installed, and the differential bearing preload and ring and pinion backlash are set to factory specification. The shift forks are then reset to match the new case, and final assembly is done.

Price is for labor only. Parts and machine work not included.

LD200 $533.00
MK8, 9, FT/FG without pump $647.00
MK 4, 5, 6, 7 $769.00

Blueprint of Transmission

A Scott Young Enterprises blueprint includes the following. An estimate, detailing the parts and labor required, is provided to the customer for approval prior to commencing work.

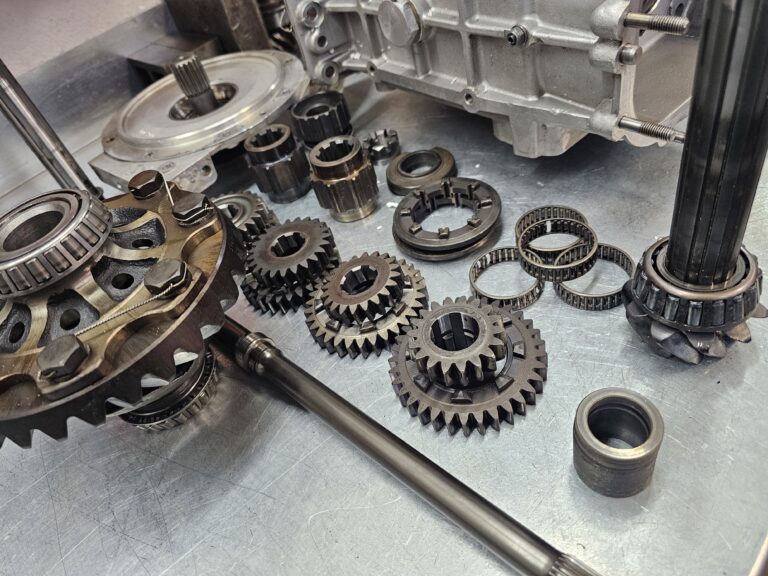

  • The transmission is disassembled completely, and all parts are cleaned and inspected by a combination of visual, or Magniflux® if necessary, to determine the extent of wear.
  • All components are prepped, set up, and assembled using Factory tooling and fixtures.
  • The pinion setting is verified by running a pattern to determine the exact ideal position.
  • The preload on all tapered roller and ball bearings is customized to the horsepower of the engine and type of use.
  • The shift rails are trued, the detents radiused and the rails polished to a high luster for shifting smoothness.
  • The shift rail bores are trued and polished.
  • Shift detent springs and balls are matched for perfect shifting feel.
  • The shift forks are aligned and shimmed precisely so that no friction exists when the gears are engaged.
  • For sequential gearboxes, the shift drum is deburred, polished and trued, and all other componentry is matched and polished for perfect sequential shifting. The drum is set up so that no fork to dog drag exists after gear engagement.

Price is for labor only. Parts and machine work not included.

LD200 $1,095.00
MK8/9, staffs 4-speed $1,295.00
Old style Formula Mazda including rear cover upgrades $1,395.00
MK 4, 5, 6, 7 $1,299.00
Staffs Formula Atlantic with Oil Pump $1,395.00
FT/FG without Oil Pump $1,500.00
FT/FG with Oil Pump $1,579.00
Jerico, Quaife RWD transmissions $   726.00
Hewland FTR $1,200.00

Install Ring and Pinion

Prices are for labor only. Parts and machine work not included. For transaxle gearboxes, setup of the shift forks to match the new ring and pinion is included in the price.

MK8, 9, LD200, Staffs, Formula Mazda $ 810.00
MK4, 5, 6, 7 $ 775.00
Staffs Atlantic, FT/FG $ 810.00
FTR $ 840.00
