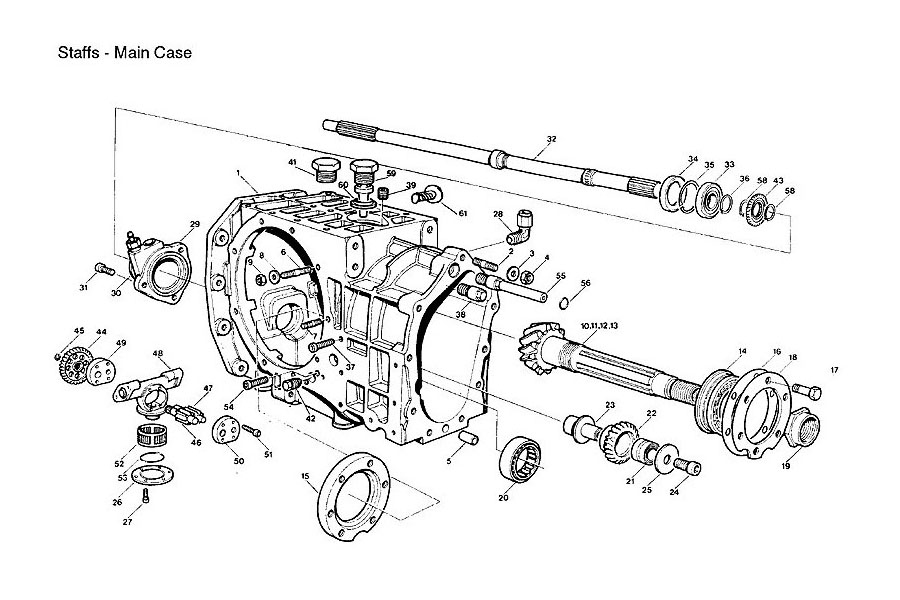

Staffs Main case - Break Down and Parts Pg.1
Reference: G1
MAIN CASE MAGNESIUM
MAIN CASE MAGNESIUM
Reference: G1
MAIN CASE ALUMINUM 2-PLATE
MAIN CASE ALUMINUM TWO SIDE PLATE TYPE; COMPLETE WITH STUDS AND 4 SP TOP DOWEL
Reference: G1
MAIN CASE, SINGLE SIDE PLATE, MAGNESIUM
MAIN CASE MAGNESIUM SINGLE-SIDE PLATE
Reference: G2
SIDE PLATE/REAR CASE, STUD
5/16″ Size, 1.75″ Length, 5/16×18 & 5/16 x 24 Thread. Hewland Part # FT2014
Reference: G4
NUT, 5/16-24
NUT 5/16 – 24 UNF NYLOCK. Hewland Part # FT2013
Reference: G5
DOWEL
DOWEL BRG CARRIER ALIGNS BTM
Reference: G6
SIDE PLATE/REAR CASE, STUD
5/16″ Size, 1.75″ Length, 5/16×18 & 5/16 x 24 Thread. Hewland Part # FT2014
Reference: G7
SIDE PLATE/REAR CASE, STUD
5/16″ Size, 1.75″ Length, 5/16×18 & 5/16 x 24 Thread. Hewland Part # FT2014
Reference: G8
WASHER 5/16
8mm. Interchange # FT 2027
Reference: G9
NUT, 5/16-24
NUT 5/16 – 24 UNF NYLOCK. Hewland Part # FT2013
Reference: G11
9/31 RING & PINION
9/31 RING & PINION
Reference: G12
10/31 RING AND PINION
10/31 RING AND PINION STAFFS
Reference: G13
9/35 RING AND PINION
9/35 RING AND PINION STAFFS
Reference: G14
PINION BEARING, 4-BOLT RETENTION
Direct. Hewland Interchange #FT 2221. Steel Cage
Reference: G15
PINION BEARING RETAINER PLATE
PINION BEARING RETAINER PLATE
Reference: G16
PINION SHIM, .025″
PINION SHIM, .025″
Reference: G16
PINION SHIM, .020″
PINION SHIM, .020″
Reference: G16
PINION SHIM, .015″
PINION SHIM, .015″
Reference: G16
PINION SHIM, .012″
PINION SHIM, .012″
Reference: G16
PINION SHIM, .010″
PINION SHIM, .010″
Reference: G16
PINION SHIM, .007″
PINION SHIM, .007″
Reference: G16
PINION SHIM, .005″
PINION SHIM, .005″
Reference: G16
PINION SHIM, .003″
PINION SHIM, .003″
Reference: G17
AN5-12A BOLT
AN5-12A BOLT
Reference: G18
WASHER RING
WASHER RING FOR MAIN PINION BEARNG RETENTION BOLTS
Reference: G19
NUT PINION BEARING
THE NUT PINION BEARING; DOES NOT FIT THE ORIGINAL “ELITE” SHAFT; MUST RE-TAP/CHASE THE ELITE SHAFT FOR CORRECT FIT
Reference: G20
LAYSHAFT BEARING, FRONT
BEARING FRONT LAYSHAFT (STAFFS AND FSCCA) AND FT200 REAR PINION SHAFT
Reference: G21
REVERSE IDLER BEARING
REVERSE IDLER BEARING
Reference: G22
REVERSE IDLER GEAR
REVERSE IDLER GEAR
Reference: G23
REVERSE IDLER SPIGOT
REVERSE IDLER SPIGOT
Reference: G24
REVERSE IDLER GEAR BOLT
REVERSE IDLER GEAR BOLT
Reference: G25
REVERSE IDLER, WASHER 3/8 HOLE
REVERSE IDLER, WASHER 3/8 HOLE
Reference: G26
DRAIN PLATE
DRAIN PLATE
Reference: G27
WASHER AN960 -10 3/16
AN960-10 3/16″ WASHER
Reference: G27
AN-BOLT DRAIN COVER
AN-BOLT DRAIN COVER
Reference: G28
OIL FITTING, -6
OIL FITTING AN-6 1/2 x 20
Reference: G29
CLUTCH SLAVE CYLINDER, SAAB 900
CLUTCH SLAVE CYL SAAB 900 TRE; SAAB CYLINDER
Reference: G30
CLUTCH RELEASE BEARING SAAB
Release bearing for Saab hydraulic release systems.
Reference: G31
CLUTCH SLAVE CYLINDER BOLT
CLUTCH SLAVE CYLINDER BOLT
Reference: G32
INPUT SHAFT, 19-13/16″ OVERALL LENGTH
CLUTCH SHAFT 19 13/16, 1 X 23 SPLINE. DB 5/6 Also fits Carbir
Reference: G32
INPUT SHAFT, 23-5/16″ OVERALL LENGTH
INPUT SHAFT, 23-5/16″ OVERALL LENGTH, 7/8″x20 SPLINE, STOHR 98FF-65
Reference: G32
INPUT SHAFT, 20-1/2″ OVERALL LENGTH
CLUTCH SHAFT 20 1/2, 7/8″x20 SPLINE, FITS SWIFT DB4 AND RALT RT41
Reference: G32
INPUT SHAFT, 21-1/2″ OVERALL LENGTH
CLUTCH SHAFT 21-1/2, 1″x23 SPLINE
Reference: G32
INPUT SHAFT, 22-1/8″ OVERALL LENGTH
INPUT SHAFT, 22-1/8″ OVERALL LENGTH, 1″x23 SPLINE, SHANNON/OLDSMOBILE POWER
Reference: G32
INPUT SHAFT, DB5 WITH QUAD 4 MOTOR
INPUT SHAFT, 20-11/16″ OVERALL LENGTH, 1″x23 SPLINE, DB5 WITH QUAD 4 MOTOR. Also fits Olds 2000
Reference: G33
BEARING, INPUT SHAFT
Hewland Part # FT24412
Reference: G34
INPUT SHAFT SEAL
CLUTCH SHAFT SEAL STAFFS/FSCCA
Reference: G35
CIRCLIP, BEARING RETAINER
Hewland Part # FT24410
Reference: G36
CIRCLIP FOR RETAINING TRIPOD TO 30 AND 22 SPLINE HALF-SHAFT
CIRCLIP FOR RETAINING TRIPOD TO 30 AND 20 SPLINE HALF-SHAFT; ALSO FOR STAFFS CLUTCH SHAFT
