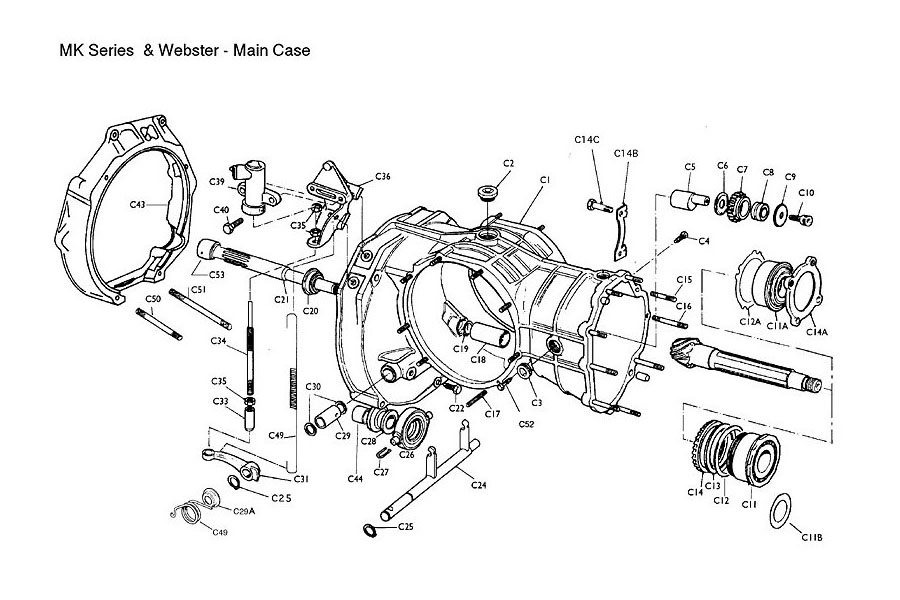

MK Series - Main Case Breakdown & parts Pg.1

Reference: C1

MAINCASE, 4-BOLT, RHINO, PREPARED

Direct. Hewland Interchange #HC 201. 16mm Cross Shaft.

Item#: 040822

Please call for pricing.

Reference: C20

INPUT SHAFT OIL SEAL FOR SOME LOLA CARS AND CUSTOM ANNULAR SLAVE KITS

32mm Outside Diameter.

Item#: INV-041072

Please call for pricing.

Reference: C20

BOLTS, INPUT SEAL RETAINER PLATE

BOLTS, INPUT SEAL RETAINER PLATE

Item#: INV-0200723

Please call for pricing.

Reference: C2,C3

PLUG, OIL FILL, MAGNETIC

Direct. Hewland Interchange #HC 2011.

Item#: INV-040840

Please call for pricing.

Reference: C2,C3

PLUG, OIL FILL, MAGNETIC

Direct. Hewland Interchange #HC 2011.

Item#: INV-040840

Please call for pricing.

Reference: C4

RETAINER BOLT, SPIGOT, 3/8″-16 (MUST DRILL AND TAP CASE)

Direct. Hewland Interchange #HC 2376. 3/8 UNC. Hole.

Item#: INV-040850

Please call for pricing.

Reference: C5

REVERSE IDLER SPIGOT, 5/16″ BOLT

Direct. Hewland Interchange #HC 2372.

Item#: INV-040869

Please call for pricing.

Reference: C6

BACK WASHER, REVERSE IDLER SPIGOT

Direct. Hewland Interchange #HC 2374.

Item#: INV-040870

Please call for pricing.

Reference: C7

REVERSE IDLER GEAR, 20 TOOTH, HEWLAND MANUFACTURE

REVERSE IDLER GEAR, 20 TOOTH, HEWLAND MANUFACTURE

Item#: INV-0408801

Please call for pricing.

Reference: C7

REVERSE IDLER GEAR, 16 TOOTH, EARLY MK5

Direct. Hewland Interchange #HC52371.

Item#: INV-040890

Please call for pricing.

Reference: C8

REVERSE IDLER BEARING

Direct. Hewland Interchange #HC 2372.

Item#: INV-040900

Price: $42.00

Reference: C9

FRONT WASHER 5/16 HOLE

Direct. Hewland Interchange #HC 2374A.

Item#: INV-040919

Please call for pricing.

Reference: C9

FRONT WASHER 1/4 HOLE

Direct. Hewland Interchange #HC 2374A.

Item#: INV-040910

Please call for pricing.

Reference: C10

BOLT SELF-LOCKING 1/4-28

Direct. Hewland Interchange #HC 2375. 1/4-28 Thread.

Item#: INV-040920

Please call for pricing.

Reference: C10

BOLT, SELF-LOCKING 5/16-24

BOLT 5/16 SELF LOCKING

Item#: INV-092375

Please call for pricing.

Reference: C11

PINION BEARING, RING NUT STYLE, STEEL CAGE

Direct. Hewland Interchange #HC82221. Replaceable Bearings.

Item#: INV-040930

Please call for pricing.

Reference: C11A

PINION BEARING, 4-BOLT RETENTION

Direct. Hewland Interchange #FT 2221. Steel Cage

Item#: INV-040931

Please call for pricing.

Reference: C13

BACKING WASHER, RING NUT

Direct. Hewland Interchange #HC8 2222A. Ring Nut Bearing.

Item#: INV-041000

Please call for pricing.

Reference: C14

RING NUT PINION BEARING

Direct. Hewland Interchange #HC8 2221A. Ring Nut Bearing.Steel HD flange

Item#: INV-041010

Please call for pricing.

Reference: C14B

LOCK TAB

Direct. Hewland Interchange #HC8 225. 4-Bolt Bearing.

Item#: INV-041012

Please call for pricing.

Reference: C14C

BOLT, METRIC, PINION BEARING RETAINER PLATE

Direct. Hewland Interchange #HC8 225. 4-Bolt Bearing.

Item#: INV-041013

Please call for pricing.

Reference: C14C

BOLT, 3/8″-16, PINION BEARING RETAINER PLATE

Direct. Hewland Interchange #HC8 225. 4-Bolt Bearing.

Item#: INV-041014

Please call for pricing.

Reference: C15

STUD SHORT BEARING CARRIER

8MM Size, 50MM Length, 8×1.25 Thread. Hewland Part # LD2014

Item#: INV-041020

Please call for pricing.

Reference: C16

STUD LONG-BEARING CARRIER

8MM Size, 63MM Length, 8×1.25 Thread. Direct. Hewland Interchange #HC 2014A.

Item#: INV-041030

Please call for pricing.

Reference: C17

STUD, SIDE PLATE

8MM Size, 47MM Length, 8×1.25 Thread. Direct. Hewland Interchange #HC 2012.

Item#: INV-041020

Please call for pricing.

Reference: C18

COUPLING SLEEVE

Direct. Hewland Interchange #HC 2364.

Item#: INV-041050

Please call for pricing.

Reference: C19

CIRCLIP, INPUT SHAFT

Direct. Hewland Interchange #HC 2390.

Item#: INV-041060

Please call for pricing.

Reference: C20

INPUT SHAFT OIL SEAL, GERMAN MANUFACTURE (BEST QUALITY)

Direct. Hewland Interchange #HC 24411.

Item#: INV-041070

Please call for pricing.

Reference: C21

INPUT SHAFT, 11-9/16″ OVERALL LENGTH, 7/8″x20 SPLINE, STANDARD FF WITH 2-1/8″ ADAPTER RING

Direct. Hewland Interchange #HC 2394. 2 1/8″ Adapter.

Item#: INV-041080

Please call for pricing.

Reference: C21

INPUT SHAFT, 12-11/16″ OVERALL LENGTH, 7/8″x20 SPLINE, LOTUS, TITAN, RT5 WITH 3-1/4″ ADAPTER RING

Direct. Lotus, Titan, RT5.

Item#: INV-041081

Please call for pricing.

Reference: C21

INPUT SHAFT, 10-3/8″ OVERALL LENGTH, 7/8″x20 SPLINE, EARLY WATER COOLED SUPER VEE

Direct. Early Water Cool Super Vee.

Item#: INV-041090

Please call for pricing.

Reference: C21

INPUT SHAFT, 10-3/8″ OVERALL LENGTH, 7/8″x20 SPLINE, EARLY WATER COOLED SUPER VEE

Direct. Early Water Cool Super Vee.

Item#: INV-041090

Please call for pricing.

Reference: C21

INPUT SHAFT, 11-9/16″

INPUT SHAFT, 11-9/16″ OVERALL LENGTH, 1″x23 SPLINE, F/S2000 WITH 2-1/8″ ADAPTER RING, HEWLAND MANUFACTURE…..

Item#: INV-0411001

Please call for pricing.

Reference: C21

INPUT SHAFT, 17-1/8″ OVERALL LENGTH, 1″x23 SPLINE, DB2, DB3, SE3

Hewland #HC 239-39

Item#: INV-041101

Please call for pricing.

Reference: C21

INPUT SHAFT, 10-3/8″ OVERALL LENGTH, 13/16″x24 SPLINE, FORMULA MAZDA

Direct. Fits VW also.

Item#: INV-041104

Please call for pricing.

Reference: C21

INPUT SHAFT, 19-9/16″ OVERALL LENGTH, 7/8″x20 SPLINE, LOLA 440

Direct. Lola 440 FF1600.

Item#: INV-041106

Please call for pricing.

Reference: C21

INPUT SHAFT, 21-1/4″ OVERALL LENGTH, 1″x23 SPLINE, LOLA 88/90 S2000

Direct. Lola 88/90 Sports 2000.

Item#: INV-041107

Please call for pricing.

Reference: C22

RETAINER BOLT, 20mm CROSS SHAFT BUSHING

Direct. Hewland Interchange #HC 2542.

Item#: INV-041110

Please call for pricing.

Reference: C22

RETAINING BOLT, 35mm FRONT LAYSHAFT BEARING

Direct. Hewland Interchange # HC 2542.

Item#: INV-041372

Please call for pricing.

Reference: C24

CROSS SHAFT, 20mm

CROSS SHAFT 20MM; FOR 041150 RELEASE BEARING TRE MANUFACTURE. Direct. Hewland Interchange #HC 254.

Item#: INV-041130

Please call for pricing.

Reference: C24

CROSS SHAFT, 16mm

CROSS SHAFT 16MM; EARLY TYPE 1

Item#: INV-041131

Please call for pricing.

Reference: C24

CROSS SHAFT 16MM GERMAN MANUFACTURE

CROSS SHAFT 16MM GERMAN MANUFACTURE

Item#: INV-0411312

Please call for pricing.

Reference: C25

CIRCLIP, 20 mm CROSS SHAFT

Direct. Hewland Interchange #HC 2546.

Item#: INV-041140

Please call for pricing.

Reference: C25

CIRCLIP, 16mm CROSS SHAFT

CIRCLIP, 16mm CROSS SHAFT

Item#: INV-041141

Please call for pricing.

Reference: C25

CROSS SHAFT WASHER 20MM

Direct. Hewland Interchange # HC 92543.

Item#: INV-041310

Please call for pricing.

Reference: C25

CROSS SHAFT WASHER 16MM

CROSS SHAFT WASHER 16MM

Item#: INV-041311

Please call for pricing.

Reference: C26

CLUTCH RELEASE BEARING

Direct. Hewland Interchange #HC 245 A.

Item#: INV-041150

Please call for pricing.

Reference: C27

RETAINING CLIP

Direct. Hewland Interchange #HC 24512. Spiral Spring.

Item#: INV-041160

Please call for pricing.

Reference: C28

BOBBIN, 1.94″ OVERALL LENGTH, FF1600, 7-1/4″ RACING CLUTCH WITH 2-1/8″ ADAPTER RING

Direct. Hewland Interchange #HC 3453. 2 1/8″ Adapter.

Item#: INV-041171

Please call for pricing.

Reference: C28

BOBBIN, 1.7″ OVERALL LENGTH, FF1600, 5-1/2″ RACING CLUTCH WITH 2-1/8″ ADAPTER RING

Direct. 2 1/4″ Adapter.

Item#: INV-0411711

Please call for pricing.
