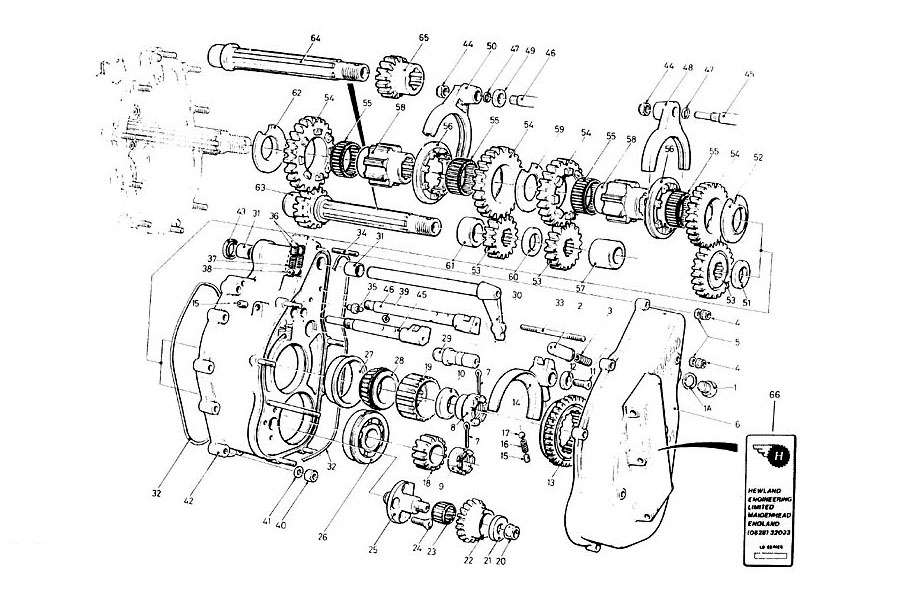

LD200 Transmission Breakdown & Parts Pg.1

Reference: D1

PLUG, 1st/REVERSE PLUNGER

PLUG; PLUNGER 1/R LOCKOUT STEEL. Hewland Part # FT2037

Item#: INV-040040

Please call for pricing.

Reference: D1A

DOWTY WASHER

Hewland Part # LD2035

Item#: INV-102037

Please call for pricing.

Reference: D2

1st/REVERSE PLUNGER

Hewland Part # HC2030

Item#: INV-040020

Please call for pricing.

Reference: D3

SPRING, 1st/REVERSE PLUNGER (STIFF, 4-SPEED)

Use stiff spring for 4-speed. Use a soft spring for 5-speed. Hewland Part #FT2032

Item#: INV-040030

Please call for pricing.

Reference: D4

NUT, 6mmX1.0

Hewland Part # LD20210

Item#: INV-1020210

Please call for pricing.

Reference: D5

WASHER 1/4 IN

WASHER, 6mm. Hewland Part # LD2029, #FT2027

Item#: INV-040050

Please call for pricing.

Reference: D6

REAR COVER, HEWLAND MANUFACTURE

Hewland Part # LD204

Item#: INV-10204

Please call for pricing.

Reference: D7

COTTER PIN

COTTER PIN PINION AND LAYSHAFT NUT. Hewland Part # FT2031

Item#: INV-040400

Please call for pricing.

Reference: D8

PINION NUT, 1-1/4″ SOCKET

NUT PINION LH HEWLAND; 7/8-20; 1-1/4 ACROSS FLAT

Item#: INV-080230

Please call for pricing.

Reference: D9

LAYSHAFT NUT

RH THREAD. Hewland Part # LD236

Item#: INV-10236

Please call for pricing.

Reference: D10

REAR PINION WASHER/CONE

Hewland Part # LD2301

Item#: INV-102301

Please call for pricing.

Reference: D11

RETAINING BOLT, REVERSE FORK

Hewland Part # LD2378A

Item#: INV-102378

Please call for pricing.

Reference: D12

WASHER, REVERSE FORK POST

Hewland Part # LD2533

Item#: INV-102533

Please call for pricing.

Reference: D14

SHIFT FORK, REVERSE

Hewland Part # LD2533

Item#: INV-10253

Please call for pricing.

Reference: D15

INTERLOCK PLUG

INTERLOCK PLUG 3/8-16 X 3/8; Hewland Part # FT2028

Item#: INV-040100

Please call for pricing.

Reference: D16

DETENT SPRING, REVERSE FORK

Hewland Part # FGA62034

Item#: INV-1262034

Please call for pricing.

Reference: D17

DETENT BALL, 1/REVERSE PLUNGER

DETENT BALL, REVERSE, 5/16″ Hewland Part # FT2033

Item#: INV-112033

Please call for pricing.

Reference: D18

REVERSE DRIVER GEAR

Hewland Part # LD238

Item#: INV-10238

Please call for pricing.

Reference: D19

REVERSE HUB

Hewland Part # LD228

Item#: INV-10228

Please call for pricing.

Reference: D20

NUT, REVERSE IDLER

Hewland Part # VG2375

Item#: INV-132375

Please call for pricing.

Reference: D21

WASHER REVERSE IDLER

Hewland Part # FT 2374

Item#: INV-112374

Please call for pricing.

Reference: D22

GEAR REVERSE IDLER

Hewland Part # LD2371

Item#: INV-102371

Please call for pricing.

Reference: D23

BEARING REVERSE IDLER

Hewland Part # LD2372

Item#: INV-102372

Please call for pricing.

Reference: D24

RETAINING BOLT, REVERSE IDLER SPIGOT

Hewland Part # LD2378

Item#: INV-102378A

Please call for pricing.

Reference: D25

REVERSE IDLER SPIGOT

Hewland Part # LD2373

Item#: INV-102373

Please call for pricing.

Reference: D26

REAR LAYSHAFT BEARING

Hewland Part # LD2343

Item#: INV-102343

Please call for pricing.

Reference: D27

REAR PINION BEARING, CUP

Hewland Part # LD2291A

Item#: INV-102291A

Please call for pricing.

Reference: D28

REAR PINION BEARING, CONE

Hewland Part # LD2291B

Item#: INV-102291B

Please call for pricing.

Reference: D29

REVERSE SHIFT FORK POST

Hewland Part # LD2531

Item#: INV-102531

Please call for pricing.

Reference: D30

SELECTOR FINGER

Hewland Part # LD252

Item#: INV-10252

Please call for pricing.

Reference: D31

SHIFT FINGER BUSHING, HEWLAND BEARING CARRIER, TEFLON LINED

BUSHING SELECTOR FINGER AMERICAN

Item#: INV-092036

Please call for pricing.

Reference: D32

ROPE SEAL / FOOT (ORIGINAL EQUIPMENT)

ROPE SEAL / FOOT (ORIGINAL EQUIPMENT). Hewland Part # VG2019

Item#: INV-132019

Please call for pricing.

Reference: D33

STUD LONG REAR COVER

6MM Size, 88MM Length, 6×1.0 Thread. Hewland Part # LD2026

Item#: INV-102026

Please call for pricing.

Reference: D34

STUD SHORT REAR COVER

6MM Size, 38MM Length, 6×1.0 Thread. Hewland Part # LD2025

Item#: INV-102025

Please call for pricing.

Reference: D35

GUIDE PIN

Hewland Part # LD20213

Item#: INV-1020213

Please call for pricing.

Reference: D36

DETENT PLUG

Hewland Part # FT2023

Item#: INV-040160

Please call for pricing.

Reference: D37

DETENT SPRING

Hewland Part # LD2022

Item#: INV-102022

Please call for pricing.

Reference: D38

DETENT BALL

Hewland Part # FT2021

Item#: INV-040150

Please call for pricing.

Reference: D39

INTERLOCK DETENT

Hewland Part # FT2024

Item#: INV-050505

Please call for pricing.

Reference: D40

NUT, SIDE COVER, 8mm X 1.25

Hewland Part # HC2013A

Item#: INV-040170

Please call for pricing.

Reference: D41

WASHER 5/16

8mm. Interchange # FT 2027

Item#: INV-040090

Please call for pricing.

Reference: D42

BEARING CARRIER, CASTING ONLY

Hewland Part # LD202

Item#: INV-10202

Please call for pricing.

Reference: D43

SHIFT FINGER SEAL

USE IN MACHINED SEAL POCKET. Hewland Part # FT20357

Item#: INV-1120375

Please call for pricing.

Reference: D44

NUT, SHIFT FORK, SELF LOCKING

Interchange # FT 2462, No Locktab Required, 5 Required

Item#: INV-040290

Please call for pricing.

Reference: D45

SHIFT RAIL, 3rd/4th

Hewland Part # LD247

Item#: INV-10247

Please call for pricing.

Reference: D46

SHIFT RAIL, 1st/2nd

Hewland Part # LD246

Item#: INV-10246

Please call for pricing.

Reference: D47

SHIM SELECTOR FORK — VARIOUS

SHIM SELECTOR FORK VARIOUS SIZES – Minimum .110, Maximum .225, increments of .005

Item#: INV-050513

Please call for pricing.

Reference: D48

SHIFT FORK, 3rd/4th

Hewland Part # LD250

Item#: INV-10250

Please call for pricing.

Reference: D49

STOP SPACER, 1st/2nd RAIL

Hewland Part # LD2464

Item#: INV-102464

Please call for pricing.

Reference: D49A

STOP SHIM, 010″

STOP SHIM, 010″

Item#: INV-040326

Please call for pricing.

Reference: D49A

STOP SHIM, 005″

STOP SHIM, 005″

Item#: INV-040325

Please call for pricing.
