FT200

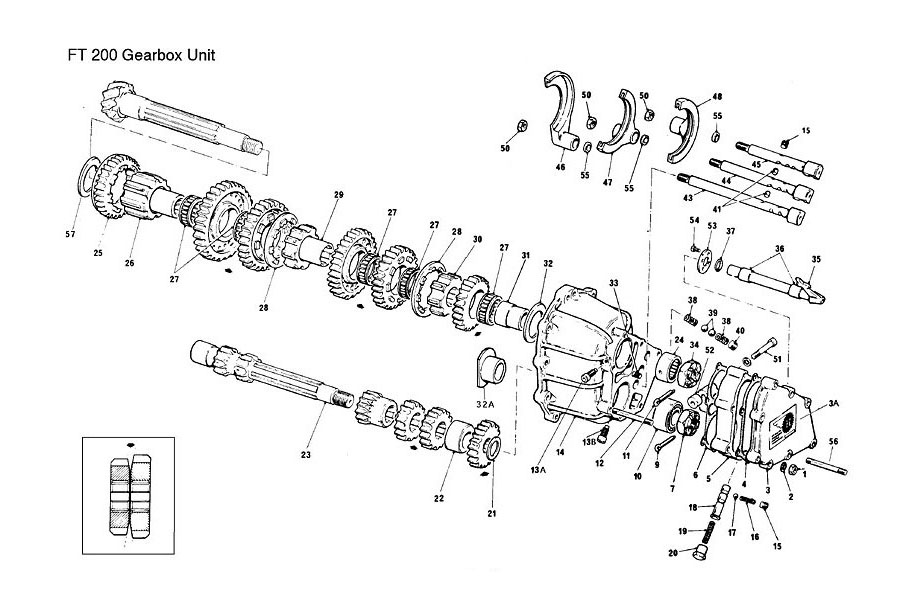

FT200 transmission Breakdown & Parts

For information on pricing and availability, don't hesitate to get in touch with us at: 972.737.8047

Reference: J1

NUT, 5/16-24

NUT 5/16 – 24 UNF NYLOCK. Hewland Part # FT2013

Item#: INV-050112
Price: $0.41

Reference: J2

WASHER 5/16

8mm. Interchange # FT 2027

Item#: INV-040090
Price: $0.21

Reference: J3

REAR COVER, STANDARD

END COVER FT200 STD; NO WING MOUNT; Hewland Part # FT204

Item#: INV-11204
Price: $573.00

Reference: J4

GASKET, REAR COVER

Hewland Part # FT260

Item#: INV-11260
Price: $14.00

Reference: J5

SHIFT FINGER HOUSING

Hewland Part # FT203

Item#: INV-11203
Price: $1,700.00

Reference: J6

GASKET, SHIFT FINGER HOUSING

Hewland Part # FT261

Item#: INV-11261
Price: $14.00

Reference: J7

LAYSHAFT NUT, 7/8-20 THREAD, 1-1/4″ SOCKET

LAYSHAFT NUT (RH) HEWLAND 7/8-20

Item#: INV-080236
Price: $89.95

Reference: J9

COTTER PIN

COTTER PIN PINION AND LAYSHAFT NUT. Hewland Part # FT2031

Item#: INV-040400
Price: $0.41

Reference: J10

LAYSHAFT BEARING, REAR

REAR LAYSHAFT BEARING WMIN-028T; LATE STYLE FT, ROLLER BEARING

Item#: INV-050312A
Price: $130.91

Reference: J10

LAYSHAFT BEARING, DOUBLE ROW BALL BEARING

Hewland Part # FT2343

Item#: INV-112343
Price: $54.45

Reference: J10

LAYSHAFT SPACER, 2nd/3rd

Hewland Part # LD2347

Item#: INV-102347
Price: $95.00

Reference: J10

LAYSHAFT BEARING INNER TRACK

Hewland Part # FGC2343, LATE FT WITH ROLLER BEARING

Item#: INV-112343A
Price: $161.00

Reference: J11

COTTER PIN

COTTER PIN PINION AND LAYSHAFT NUT. Hewland Part # FT2031

Item#: INV-040400
Price: $0.41

Reference: J11

OIL PUMP DRIVER GEAR, 11-TOOTH

GEAR LSHAFT PUMP DR 11-TOOTH

Item#: INV-112659
Price: $225.00

Reference: J12

STUD, REAR COVER, 3.12″ LONG

5/16″ Size, 3.12″ Length, 5/16×18 & 5/16 x 24 Thread. Hewland Part # FT2026

Item#: INV-112026
Price: $9.00

Reference: J13A

RETAINER BOLT, PINION BEARING

RETAINER BOLT, PINION BEARING

Item#: INV-112293A
Price: $7.00

Reference: J13B

RETAINER BOLT, LAYSHAFT BEARING

RETAINER BOLT, LAYSHAFT BEARING

Item#: INV-112293B
Price: $7.00

Reference: J14

BEARING CARRIER, LATE STYLE

Hewland Part # FGB202, Fits all FT through FGC CALL FOR PRICE

Item#: INV-12202
Price: $3,700.00

Reference: J15

INTERLOCK PLUG

INTERLOCK PLUG 3/8-16 X 3/8; Hewland Part # FT2028

Item#: INV-040100
Price: $0.50

Reference: J16

DETENT SPRING, 1/REVERSE PLUNGER LOCKOUT

Hewland Part # FT2034

Item#: INV-112034
Price: $10.00

Reference: J17

DETENT BALL, 1/REVERSE PLUNGER

DETENT BALL, REVERSE, 5/16″ Hewland Part # FT2033

Item#: INV-112033
Price: $1.03

Reference: J18

1st/REVERSE PLUNGER

Hewland Part # FT2030

Item#: INV-112030
Price: $90.00

Reference: J20

PLUG, 1st/REVERSE PLUNGER

PLUG; PLUNGER 1/R LOCKOUT STEEL. Hewland Part # FT2037

Item#: INV-040040
Price: $18.45

Reference: J21

THRUST WASHER; 5TH LAYSHFT GR

THRUST WASHER; 5TH LAYSHFT GR; Hewland Part # FGC2345

Item#: INV-112345
Price: $102.00

Reference: J22

LAYSHAFT SPACER

SPACER 4/5 LAYSHAFT GEAR; Hewland Part # FGC2346

Item#: INV-112346
Price: $105.00

Reference: J24

BEARING REAR PINION SHAFT

BEARING REAR PINION SHAFT; WITH GRUB SCREW PROVISION; Hewland Part # FT2291

Item#: INV-050410
Price: $84.95

Reference: J25

1st/REVERSE SLIDER

Hewland Part # FT231

Item#: INV-11231
Price: $555.00

Reference: J26

1st/REVERSE HUB, FG, 3-1/16″ LONG

1st/REVERSE HUB, FG, 3-1/16″ LONG

Item#: INV-12226
Price: $789.00

Reference: J26

1st/REVERSE HUB

Hewland Part # FT226

Item#: INV-11226
Price: $828.00

Reference: J27

DRIVEN GEAR NEEDLE BEARING

DRIVEN GEAR NEEDLE BEARING; Hewland Part # FT2261

Item#: INV-040470
Price: $30.80

Reference: J28

DOG RING, EARLY, 2.5″ BORE, HEWLAND

Hewland Part # FT232, Minor Dia. 2.5″

Item#: INV-11232
Price: $275.00

Reference: J28

DOG RING, LATE STYLE, 2.35″ BORE, HEWLAND

DOG RING, LATE STYLE, 2.35″ BORE, HEWLAND MANUFACTURE

Item#: INV-11232B
Price: $275.00

Reference: J29

2.35″ LATE STYLE DOG HUB 2/3

Hewland Part # FG227, Dog hub 2.35″

Item#: INV-12227
Price: $643.00

Reference: J30

DOG HUB LATE FT/FG 4/5

Hewland Part # FG228, Dog hub 2.35″

Item#: INV-12228
Price: $543.00

Reference: J31

INNER TRACK

Hewland Part # FT229

Item#: INV-11229
Price: $213.00

Reference: J32

THRUST WASHER

Hewland Part # FT2294

Item#: INV-112294
Price: $132.00

Reference: J32A

INNER TRACK & THRUST WASHER

Hewland Part # FG229, “Top Hat”. FGC replaces FGB.

There are various combinations of differential and side plates for the FGB. Please call for details: inner tracks and fifth gear thrust washer for Staffs, FSCCA, and late FT.

Item#: INV-050320
Price: $155.00

Reference: J33

STUD, OUTBOARD BRAKE SIDE PLATE

5/16″ Size, 1.62″ Length, 5/16×18 & 5/16 x 24 Thread. Hewland Part # FT2021

Item#: INV-112012
Price: $8.00

Reference: J34

PINION NUT, 1-1/4″ SOCKET

NUT PINION LH HEWLAND; 7/8-20; 1-1/4 ACROSS FLAT

Item#: INV-080230
Price: $89.95

Reference: J35

SHIFT FINGER

SELECTOR FINGER FT200

Item#: INV-11252
Price: $422.00

Reference: J36

SHIFT FINGER BUSHING, HEWLAND BEARING CARRIER, TEFLON LINED

BUSHING SELECTOR FINGER AMERICAN

Item#: INV-092036
Price: $7.40

Reference: J37

SHIFT FINGER SEAL

USE IN MACHINED SEAL POCKET. Hewland Part # FT20357

Item#: INV-1120375
Price: $7.00

Reference: J37

INNER QUAD RING SEAL FOR SHIFTER SHAFT SEAL KITS

SEAL SHIFTER SHAFT INNER QUAD RING ALSO FITS FT200 SHIFTER SHAFT SEAL POCKET

Item#: INV-020051
Price: $2.48

Reference: J38

SPRING DETENT

Hewland Part # FT2022

Item#: INV-040140
Price: $2.05

Reference: J39

DETENT BALL

Hewland Part # FT2021

Item#: INV-040150
Price: $0.60

Reference: J3A

HEWLAND NAMEPLATE FOR VINTAGE GEARBOXES

Complete the restoration of your Vintage Sports Racer or Formula Car. Just add the serial number and install it on your gearbox. Self-adhesive backing makes installation easy.

Item#: INV-020071
Price: $20.00

Reference: J40

DETENT PLUG

Hewland Part # FT2023

Item#: INV-040160
Price: $0.56
